Engineering Fabrication & CNC Machining Services Malaysia

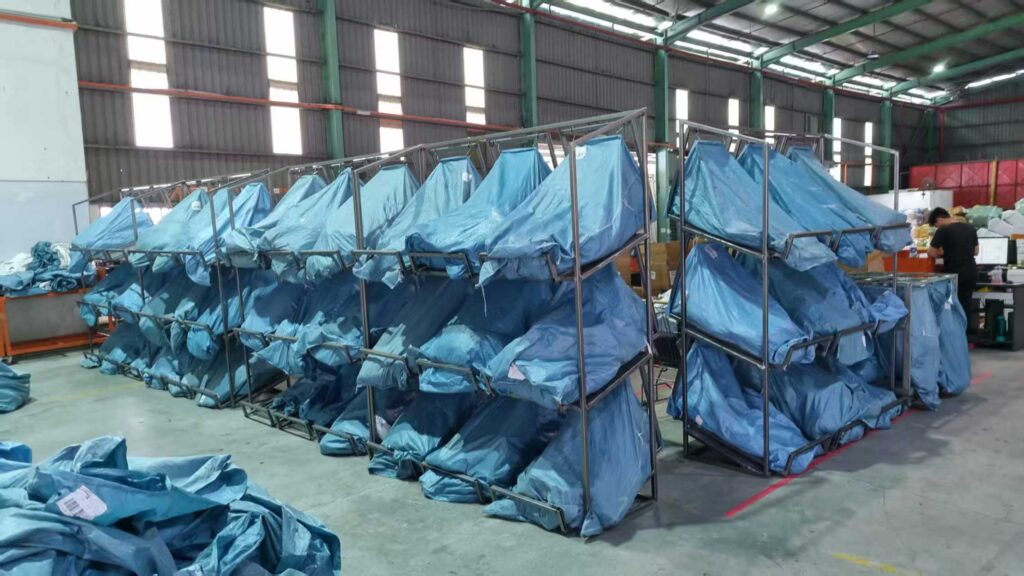

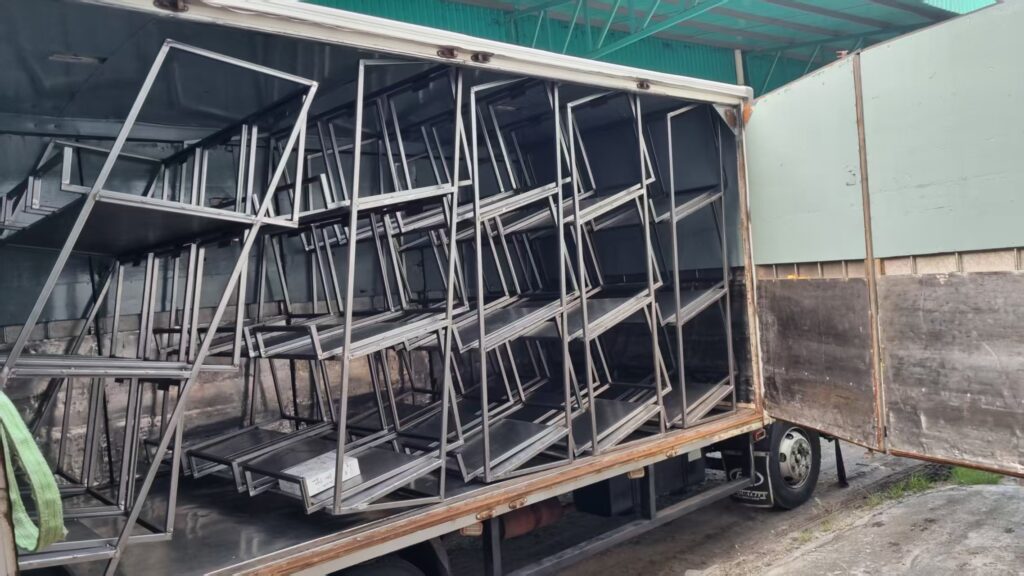

Custom-Made Industrial Racking Fabrication
Racking System Designed & Fabricated According to Customer Size, Load Requirement and Site Layout
Chin Wan Engineering provides custom-made racking fabrication based on customer requirements, product size, loading weight, storage method, and factory layout. Each racking structure can be designed and fabricated to suit the customer’s actual usage, helping improve storage arrangement, material handling efficiency, and workplace organization.
The racking system can be customized in terms of height, width, tier level, loading capacity, frame structure, material type, and finishing based on the application requirement.
Service Scope
- Custom-made racking fabrication
- Racking design based on customer request
- Heavy-duty welded steel structure
- Custom size, height and tier arrangement
- Storage rack for factory and warehouse use
- Material handling and production storage support
- Cutting, welding, drilling and surface finishing
- Fabrication according to site layout and product size

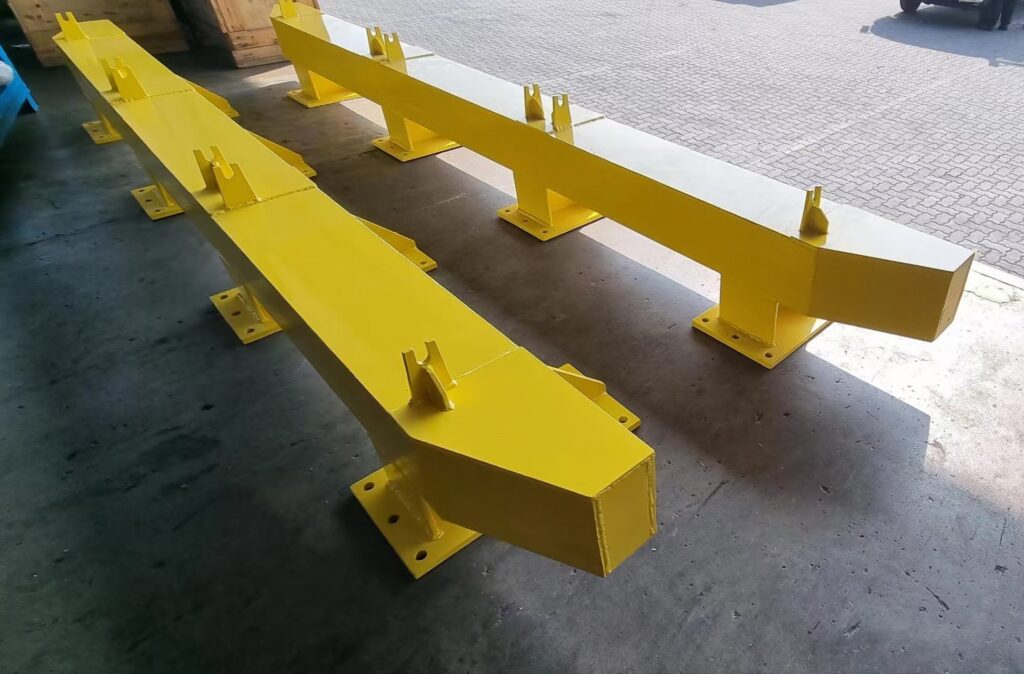

Heavy-Duty I-Beam Forklift Impact Protection

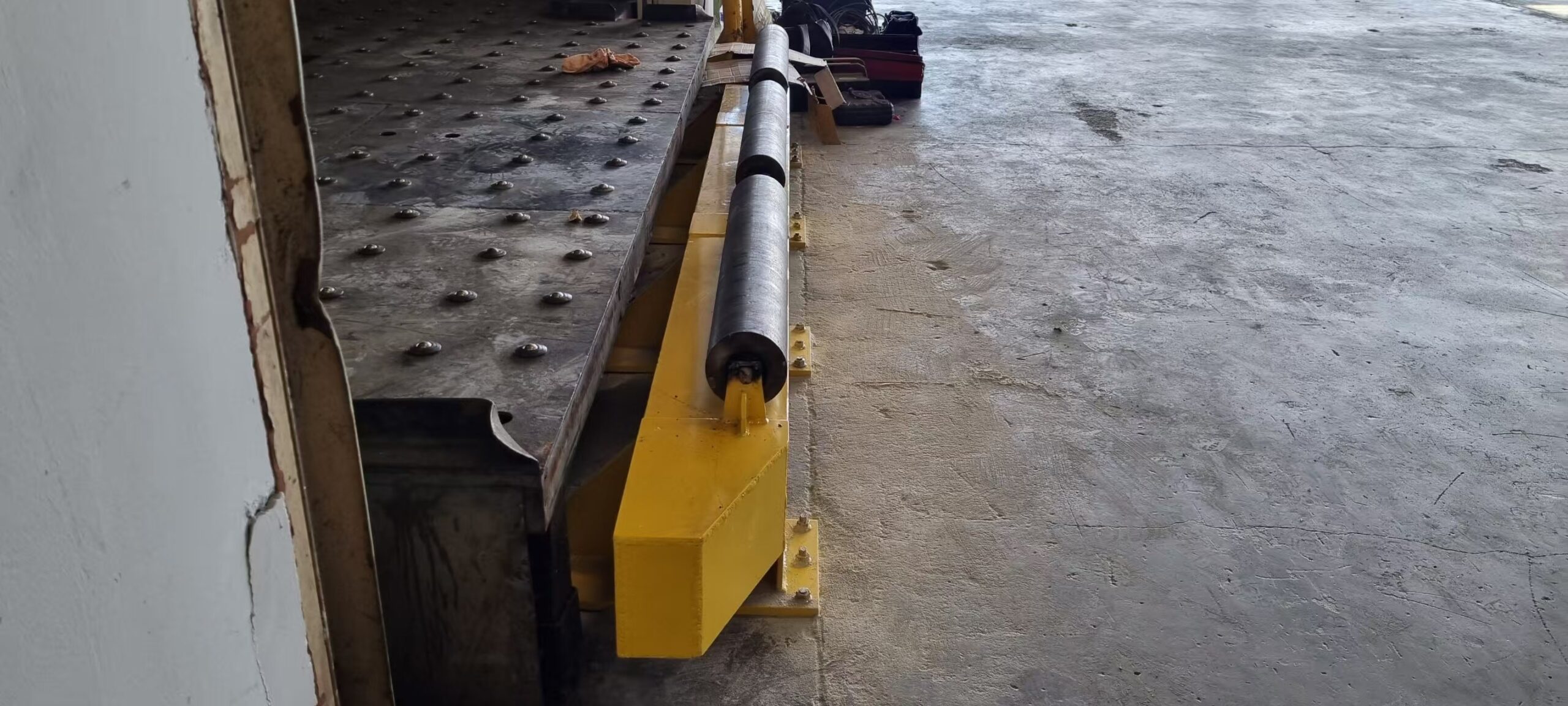

I-Beam Guard Structure Beside Ball Transfer Unit for Forklift Collision Protection
Chin Wan Engineering fabricates heavy-duty I-beam protection structures to protect ball transfer units and handling equipment from forklift impact during loading, unloading, and material transfer operations.
The I-beam guard is installed beside the ball transfer unit to act as a strong protection barrier, reducing the risk of forklift collision damage to the transfer table, machine frame, rollers, and surrounding equipment.
Service Scope
- Heavy-duty I-beam protection fabrication
- Forklift impact protection beside ball transfer unit
- Anti-collision guard structure for material handling area
- Reinforced welding and anchoring support
- Custom size based on site layout and forklift movement
- Suitable for factory, warehouse and loading/unloading area
- Protection for ball transfer table, conveyor side frame and machinery

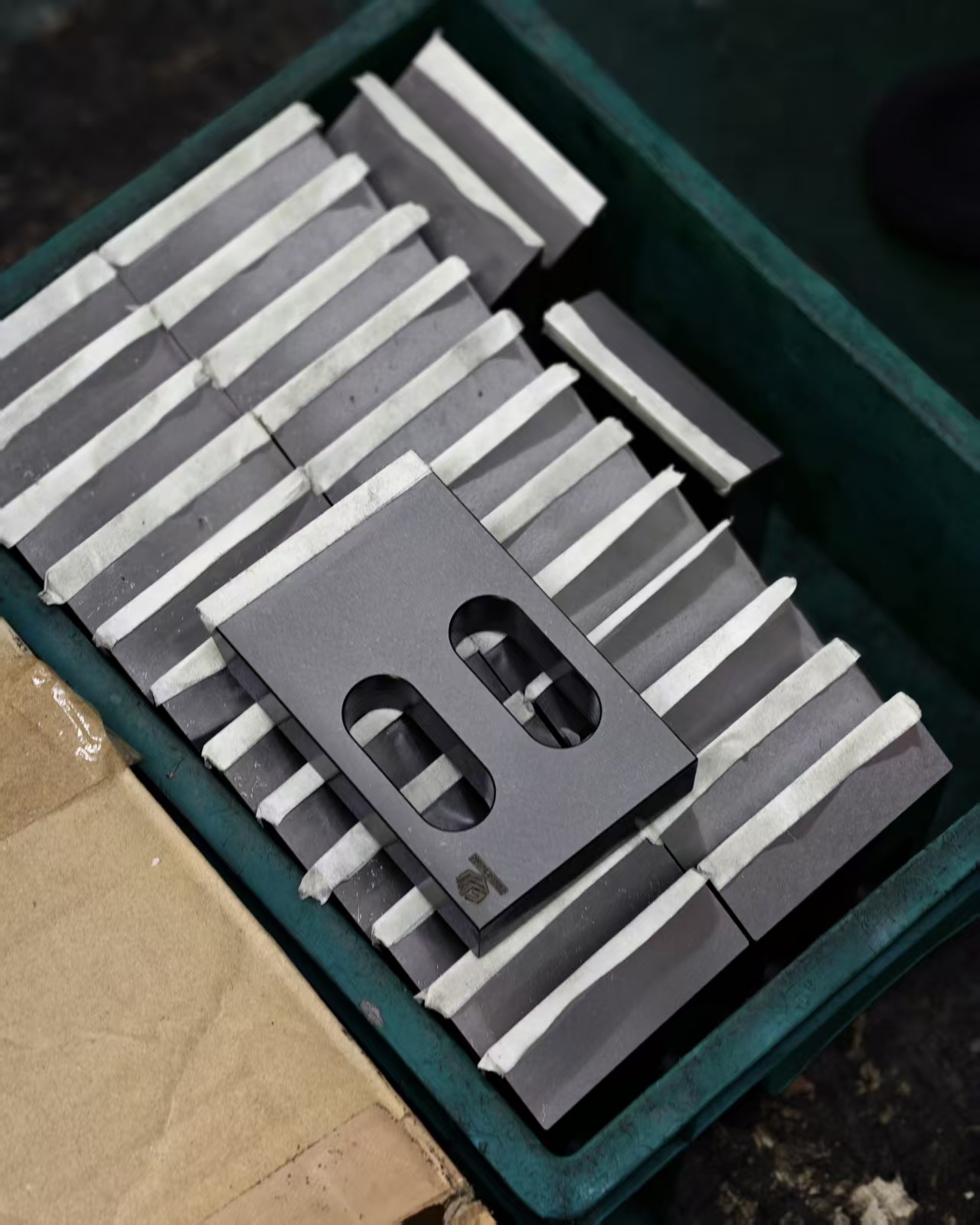

CNC Crusher Blade Fabrication & Reconditioning
Custom Crusher Blade Design, Grinding, Hardening, Re-Angle Improvement, Dismantling & Installation Support
Chin Wan Engineering provides custom CNC crusher blade fabrication and reconditioning support for plastic crusher machines. Our service covers blade design, machining, precision grinding, hardening treatment, angle improvement, dismantling, and installation support based on customer machine requirements.
For worn or damaged crusher blades, we can assist to regrind the cutting edge, improve the blade angle, and restore the blade condition to achieve better cutting performance and longer service life. Blade material and cutting angle can be customized according to the plastic material, machine condition, and production application.
Service Scope
- Custom crusher blade fabrication
- CNC machining based on sample or drawing
- Blade grinding and edge reconditioning
- Hardening treatment up to HRC 60
- Customized blade angle design
- Cutting angle re-improvement for better crushing performance
- Dismantling and installation support for plastic crusher machines
- Replacement and refurbishment of worn crusher blades
CNC Precision Machining Showcase
Square Shaft Machining According to Customer Drawing
Chin Wan Engineering provides CNC machining support for custom mechanical parts based on customer drawings and technical requirements. For this project, the square shaft was machined according to the customer’s drawing specification, with dimensional control maintained within ±0.01 mm.
This type of work requires accurate machining, proper measuring control, and careful tolerance checking to ensure the finished part can fit properly during assembly.
Key Highlights
- CNC machining according to customer drawing
- Square shaft precision machining
- Dimensional tolerance control: ±0.01 mm
- Suitable for machine parts, automation components and replacement parts
- Final dimension checking before delivery
