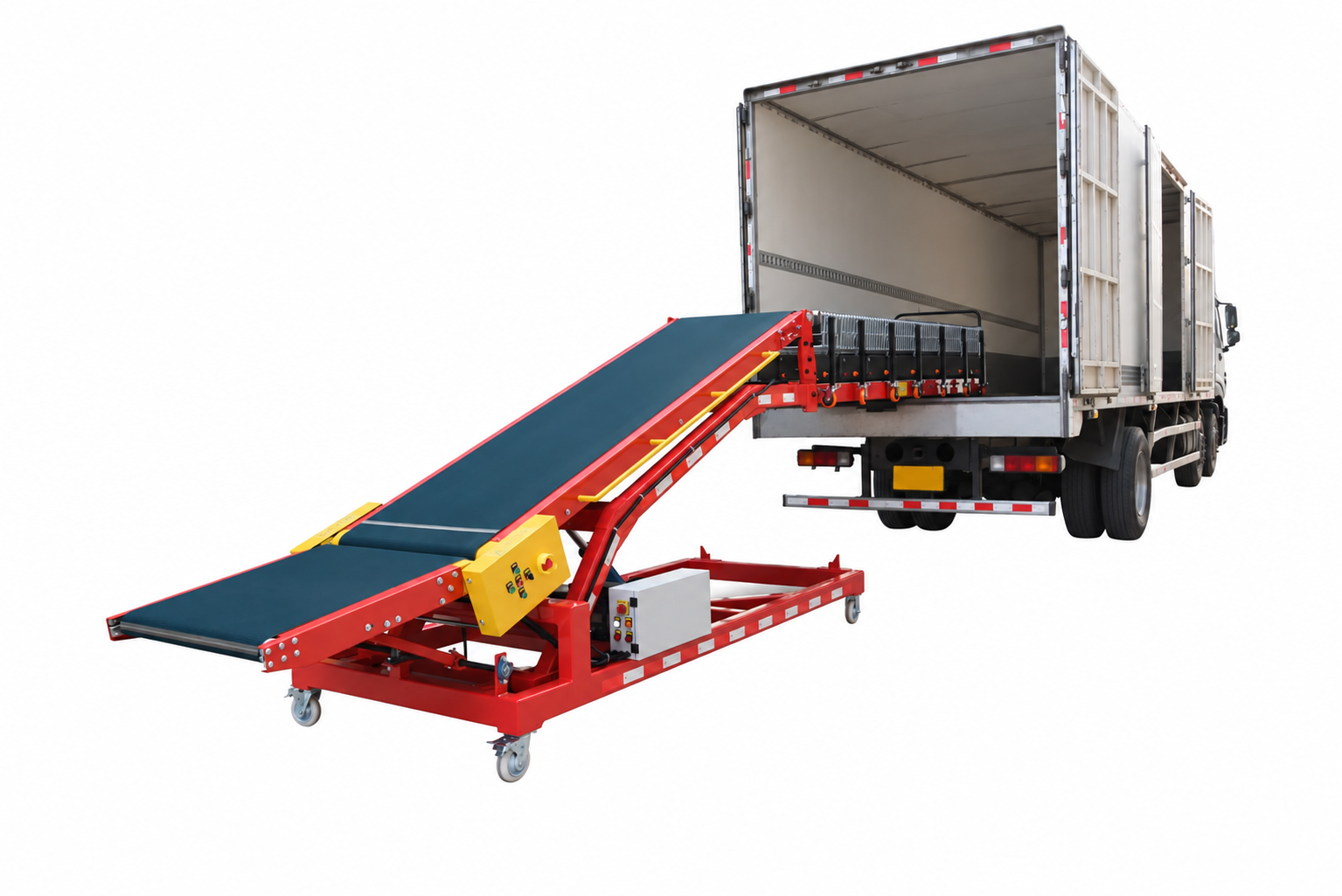

Chin Wan Engineering supplies a mobile elevating conveyor in Malaysia for moving cartons from floor level to a raised loading point, such as a truck or loading bay. Its wheeled frame can be repositioned as the loading route changes, and the belt can run forward or in reverse, subject to the selected machine configuration and site setup.
For a flexible loading layout, a mobile elevating conveyor may be combined with a flexible conveyor system for the adjacent horizontal transfer section. The correct arrangement depends on transfer heights, the connection between conveyors, package dimensions and available floor space. For a fixed height change, compare a fixed incline belt conveyor.
Mobile Elevating Conveyor Features
- Reversible belt: runs in forward or reverse direction.
- Mobile frame: two swivel casters with brakes and two fixed casters support repositioning.
- Carbon steel construction: frame and body panels are made from carbon steel.
- Industrial red finish: standard RAL 3020 industrial paint.
- Power supply: 220 V or 380 V, depending on machine configuration.
- Approximate equipment weight: 946 kg.
Where a Mobile Elevating Conveyor Can Fit
A mobile elevating conveyor can help bridge a floor-level handling area and a higher transfer point, including a truck, loading bay, platform or compatible conveyor. The required belt surface, loading and discharge heights, controls and transfer interface depend on the goods and operating conditions. Confirm the proposed configuration against the actual loading route before ordering.
Plan the Loading Route
Measure the lower and upper transfer heights, available floor space, truck or platform position, and the path used to move the conveyor between work areas. Check floor condition and clearance around doors, vehicle edges and operator walkways. Use caster brakes as directed in the equipment instructions and complete a site safety assessment before operation.
For a connected layout, a flexible conveyor may serve the adjacent horizontal section where the application and interface are suitable. Share the smallest and largest package dimensions, weight range, base condition and target throughput so the transfer arrangement can be reviewed.
Mobile Elevating Conveyor Specifications
| Belt direction | Forward and reverse |
|---|---|
| Casters | Two swivel casters with brakes; two fixed casters |
| Frame and body panels | Carbon steel |
| Finish | RAL 3020 industrial red |
| Power supply | 220 V or 380 V, according to configuration |
| Approximate equipment weight | 946 kg |
Dimensions, load capacity, belt width, incline angle and operating speed are not specified here. Confirm these details for the proposed unit before ordering.
Mobile Elevating Conveyor Questions
What does a mobile elevating conveyor do?
It transfers cartons between a lower handling point and a raised destination, such as a truck or loading bay. The exact heights and operating setup should be confirmed for the site.
Can it work with a flexible conveyor?
It may be arranged with a flexible conveyor for an adjacent horizontal transfer section when the conveyor interfaces, heights, packages and available floor space are compatible. Ask Chin Wan Engineering to review the proposed layout.
Can the belt operate in both directions?
The supplied machine information describes forward and reverse belt operation. Confirm the controls and operating sequence for the selected configuration.
What information is needed for a quotation?
Provide package dimensions and weights, required throughput, lower and upper transfer heights, site photos or a layout, the travel route and available power supply. These details help the team assess the application; capacity and dimensions must be confirmed for the proposed unit.
Request a Configuration Review
Send Chin Wan Engineering your package sizes and weights, target throughput, loading and discharge heights, site photos, available power supply and required travel route. We can discuss whether a mobile elevating conveyor, fixed incline conveyor or combined mobile elevating and flexible conveyor arrangement is suitable. Request a configuration review and quotation or call +60 12-378 6820.
